I started using the SDOpenAI plugin to write a class that could take multiple form control input values and create a string for a filter output for a form. It did a simple and respectable job in accomplishing my task, but as I started implementing it, I started wanting a lot more from it.

I ended up modifying everything in the original AI generated class.

I created a new single class for form controls so I could use WithEvents and trap the OnChange event for any number of text controls.

I updated the original class to apply the filter to a form as well and needed to have the class take the form that the filter should apply to (in my case it was a subform and the controls were on it’s parent form).

Then I needed to tell the class which fields the values applied to on the final form. This worked for a couple of the filters, but then I wanted to create filters for some combo boxes in the continuous form that did not have the displayed value in the recordset. Uh-oh, but no problem, instead of specifying the recordset field name, I wrote the clause that should go with it with the place for the value embedded in the definition. Yikes.

It ended up being a lot more in depth than I thought, but I created a function on the form to test for the existence of the class and reload it if it wasn’t there. I put this in Form OnOpen and Form Activate. The reason for this is because during development I’m often doing things that reset the VBA environment and my forms will then forget and reset their entire state. This will make sure if that happens, it will get reinstantiated. So here’s the code in the form:

'Form Code
Option Compare Database
Option Explicit
Private frmFilter As FormFilter

Private Sub setff()
    If frmFilter Is Nothing Then
        Set frmFilter = New FormFilter
        frmFilter.Init Array( _
            Array(Me.fltPartNumber, "[PartNumber] Like '*[[val]]*'"),_
            Array(Me.fltFamilyDescription, "[FamilyNumber] In (SELECT FamilyNumber FROM FamilyData WHERE [Description] Like '*[[val]]*')"),_
            Array(Me.fltColor, "ColorNum Like '*[[val]]*'"),_
            Array(Me.fltFamilyNumber, "[FamilyNumber] Like '*[[val]]*'") _
        ),Me.SubEditPartNumbers.Form
    End If
End Sub

' This is attached to a button on the form to clear all the filter boxes
Private Sub cmdClearFilters_Click()
    setff
    frmFilter.ClearFilters
End Sub

Private Sub Form_Activate()
    setff
End Sub

Private Sub Form_Open(Cancel As Integer)
    Me.Detail.BackColor = GetAppAltColor()
    setff
End Sub

The Init function for the class takes an array of arrays. Each element of the main array contains a 2 element array with the form control with the filter value and a definition it should use to filter the form. The second argument other than the array is the form to be filtered by these controls. Be careful using subforms like this. If you mess with changing the ControlSource of the subform control this will reset that object and the FormFilter form reference will no longer be valid. That’s not a problem for me on this form because it’s just a straight up subform I’m not loading with code.

Now here’s the FormFilter class:

'FormFilter Class
Option Compare Database
Option Explicit

Private pFields As Collection
Private pForm As Access.Form

Private Sub Class_Initialize()
    Set pFields = New Collection
End Sub

Public Sub Init(arrControlsAndColumns As Variant,frmToFilter As Access.Form)
    Dim itm As Variant,fld As FormFilterField,ctl As Access.Control
    Set pForm = frmToFilter
    If Not IsArray(arrControlsAndColumns) Then GoTo ExitSub
    For Each itm In arrControlsAndColumns
        If Not IsArray(itm) Then GoTo SkipLoop
        Set fld = New FormFilterField
        Set ctl = itm(0)
        fld.Init ctl,CStr(itm(1)),Me
        pFields.Add fld
SkipLoop:
    Next itm
ExitSub:
    Set fld = Nothing
    Set itm = Nothing
End Sub

Public Sub ApplyFilter()
    Dim strFilter As String
    strFilter = GetFilterString()
    pForm.Filter = strFilter
    If strFilter <>  "" Then pForm.FilterOn = True
End Sub

Public Sub ClearFilters()
    Dim itm As Variant
    For Each itm In pFields
        itm.Criteria =  ""
    Next itm
    pForm.Filter =  ""
End Sub

Private Function GetFilterString() As String
    Dim filterString As String
    Dim i As Long
    Dim crtUsed As Long

    ' Build the filter string
    For i = 1 To pFields.Count
        If pFields(i).Criteria =  "" Then GoTo SkipLoop
        If crtUsed > 0 Then
            filterString = filterString &  " AND "
        End If
        filterString = filterString & Replace(pFields(i).ColumnName, "[[val]]",pFields(i).Criteria)
        crtUsed = crtUsed + 1
SkipLoop:
    Next i

    GetFilterString = filterString
End Function

Private Sub Class_Terminate()
    Set pFields = Nothing
    Set pForm = Nothing
End Sub

And the class for each control so that I could sync all the events for those controls:

'FormFilterField Class
Option Compare Database
Option Explicit

Private WithEvents ctl As Access.TextBox
Private parent As FormFilter
Private rsColumn As String

Public Sub Init(AccessControl As Access.Control,rsColumnName As String,FormFilterObject As FormFilter)
    Set ctl = AccessControl
    Set parent = FormFilterObject
    rsColumn = rsColumnName
    ctl.OnChange =  "[Event Procedure]"
End Sub

Public Property Get Criteria() As String
    If Screen.ActiveControl.Name = ctl.Name Then
        Criteria = Nz(ctl.Text, "")
    Else
        Criteria = Nz(ctl.value, "")
    End If
End Property

Public Property Let Criteria(ByVal value As String)
    ctl.value = value
End Property

Public Property Get ColumnName() As String
    ColumnName = rsColumn
End Property

Public Property Let ColumnName(ByVal value As String)
    rsColumn = value
End Property

Private Sub Class_Terminate()
    Set parent = Nothing
    Set ctl = Nothing
End Sub

Private Sub ctl_Change()
    parent.ApplyFilter
End Sub

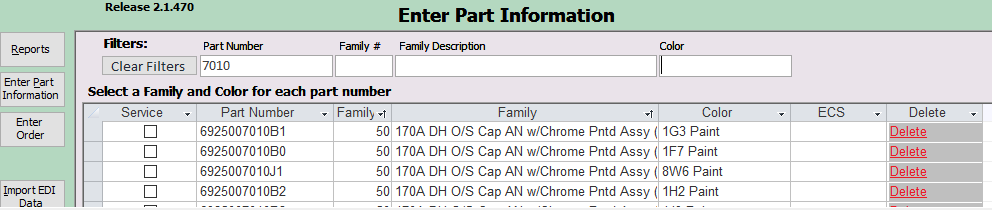

The final result on the form looks something like this:
